Cement Rotary Kiln

Application Cement Plant
Capacity 1000-5000 t/d
Motor Power 160-630 kW
Weight 252-841 tons

Overview

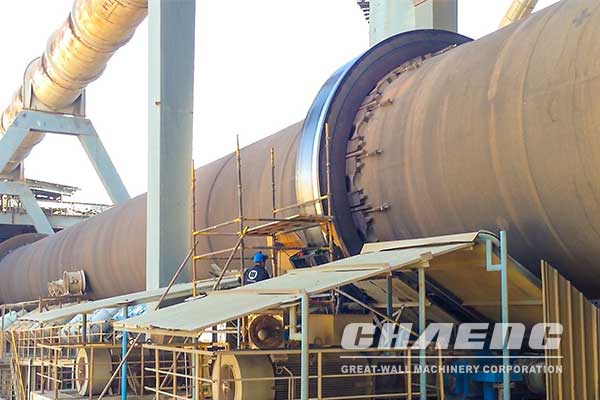

The cement kiln, also called cement rotary kiln, which is mainly used for calcinating cement clinker, is the main equipment for the new dry type cement production line. This cement equipment is mainly composed of cylinder, supporting device, supporting device with catch wheel, transmission device, lubrication device, mobile kiln head and sealing device at the end of the kiln.

Features
1. Supporting device: advanced shaft structure, automatic temperature measuring device and electrical heating.
2. Catch wheel: including mechanical wheel and hydraulic wheel.
3. Gears: single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable, energy-saving, and efficient.
4. Cylinder type bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple, so replacement is convenient and won’t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to cement kiln models, including air cylinder edge sealing, spring edge sealing, and graphite block sealing and combination for above. The sealing effect is very good.
6. Kiln head hood: including stationary type and flexible type.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Video of CHAENG

Specifications

Model Output (t/d) Main Drive (r/min) Motor (kW) Regulating Range (r/min) Gearbox Velocity Ratio Weight (t)
Φ2.2×50 96 0.125-1.25 30 132-1320 157 130.71
Φ2.5×50 130 0.516-1.549 55 440-1320 99.96 167.5
Φ3×48 850 0.3309-3.309 90 100-1000 32.11 237
Φ3.2×48 1000 0.375-3.75 160 100-1000 27.469 252
Φ3.2×50 1200 0.398-3.975 190 150-1500 40.85 263
Φ3.3×52 1200 0.391-3.91 190 100-1000 27.707 280.8
Φ4×60 2500 0.396-3.96 315 100-1000 34.601 487.5
Φ4.2×60 2800 0.4165-4.165 420 100-1000 35.526 576.1
Φ4.3×62 3000 0.398-3.98 420 100-1000 35.714 598.5
Φ4.3×64 3200 0.449~4.49 450 100~1000 24.365 585
Φ4.5×66 4000 0.41~4.1 630 100~1000 34.069 710.4
Φ4.8×70 5000~5500 0.4~4.0 630 100-1000 30.876 845.3
Φ4.8×72 5000 0.403~4.03 560 100~1000 30.365 847
Φ4.8×74 5000 0.35~4 630 130~1500 42.226 841
